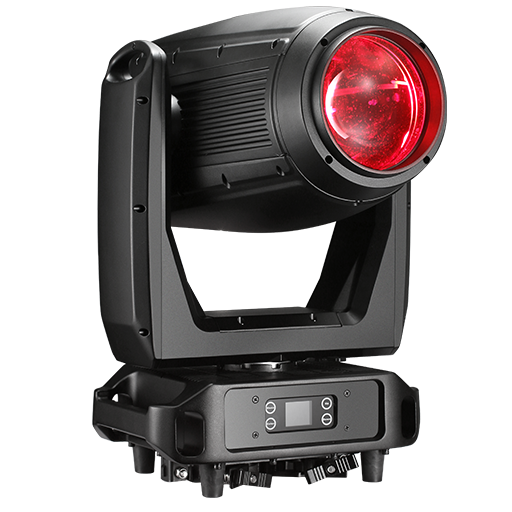

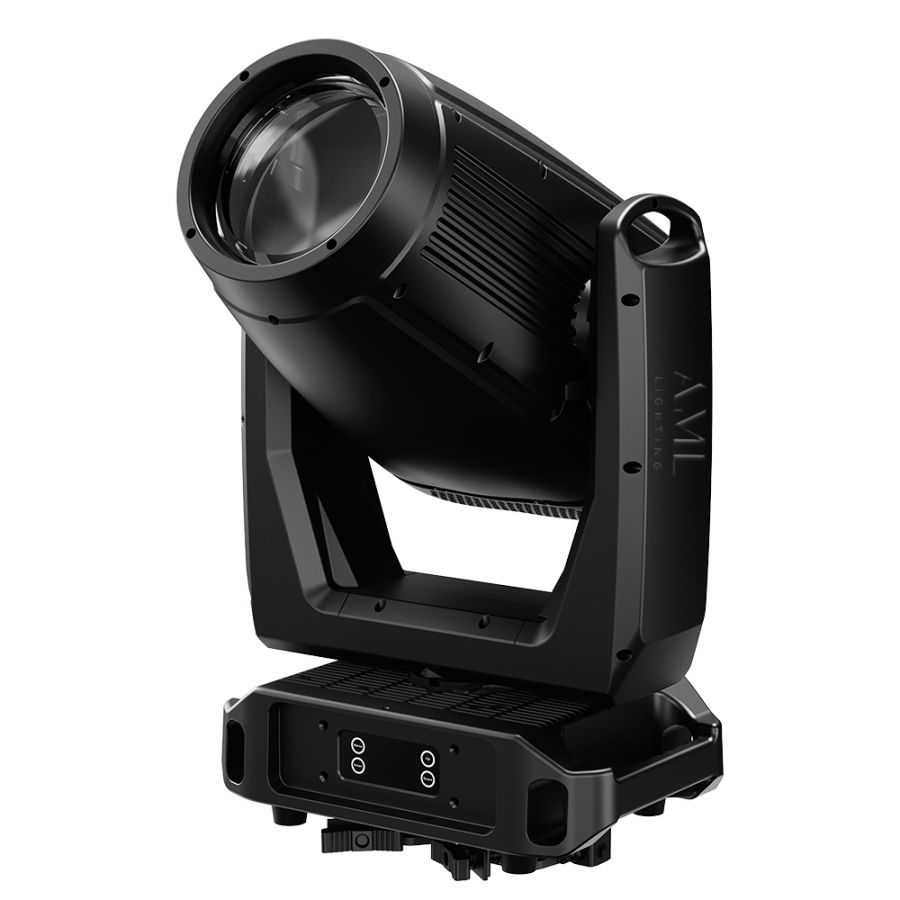

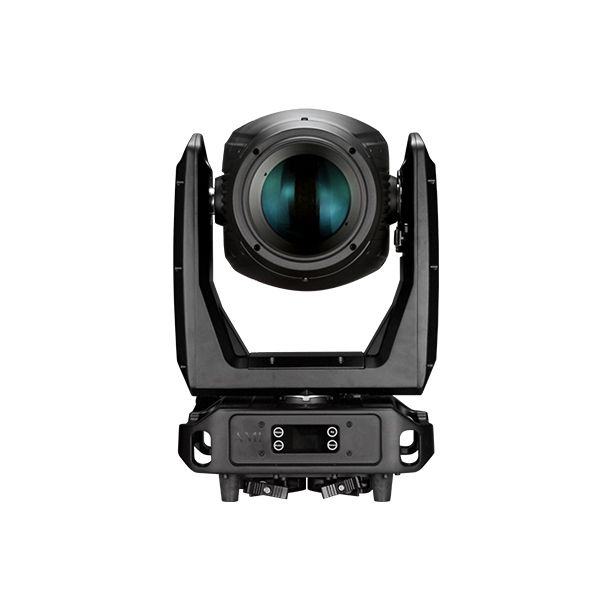

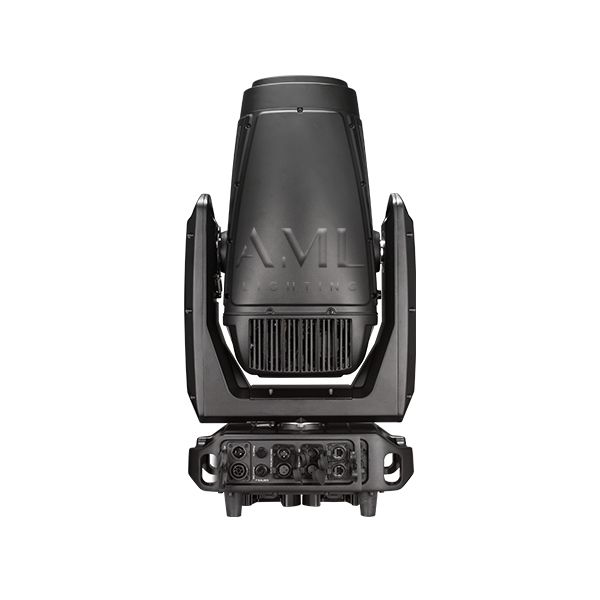

Product Parameters

• LIGHT SOURCE

• Light Source:800W LED Engine

• Total Lumen Output of engine:5,2500 lumens

• Color Temperature Output of Fixture:7,000K

• Life Expectancy:20,000 hours

1. ELECTRICAL AND CONNECTORS

2. Rated Input Voltage: AC 100-240V~ 50/60 Hz

3. Total Power Consumption: 970W

4. Power Factor: ≥0.97

5. Input Current: 4.5A @ 220V

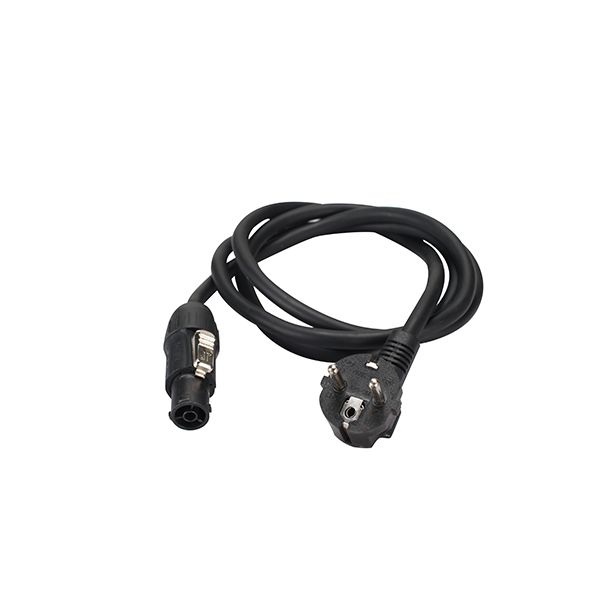

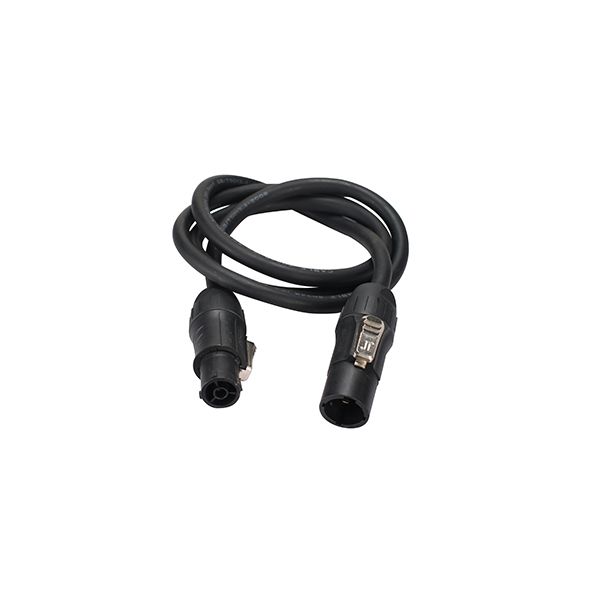

6. LED Lifespan: ≥20,000 hoursPower In/Out:Waterproof power connector in/out

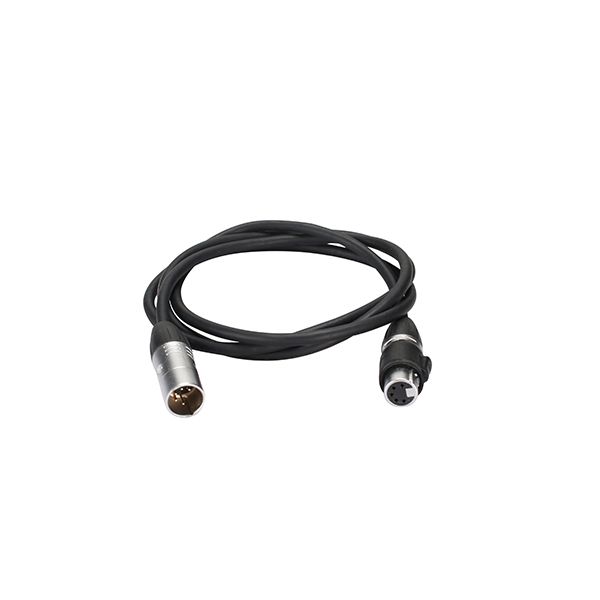

7. Data In/Out:3-pin or 5-pin waterproof XLR,

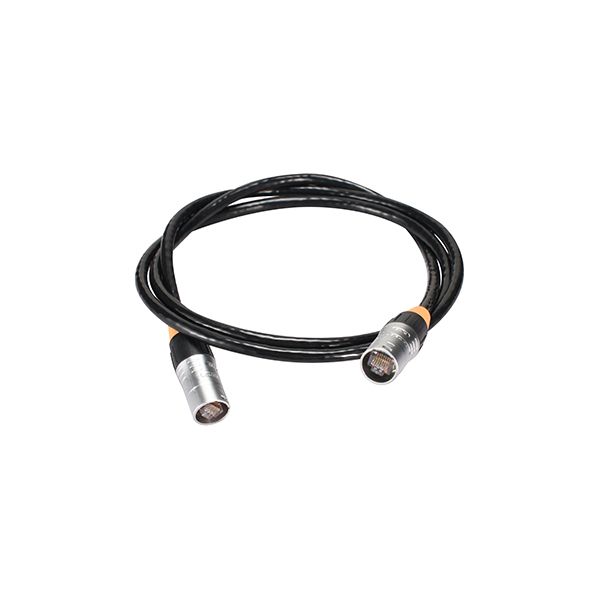

8. RJ45 connector

• OPTICAL SYSTEM

• Beam Angle: 5°–45°

• Light Source: Single 800W LED

• Luminous Flux: 31500Lm

1. CONTROL

2. 4 touch button control panel

3. Display:LCD display

4. Protocols:DMX512,RDM,Art-Net,sACN

5. Control Channels:42CH/32S CH/32F CH/23CH

• PATTERN SYSTEM

• Rotating Gobo Wheel: 7 patterns + 1 open, quick-swappable (Ø20mm outer / Ø15mm inner, 1.1mm thickness)

• Static Gobo Wheel: 8 patterns + 1 open

• Animation Wheel:1 slot,continuous bidirectional rotation

1. PRISM

2. 4-facet prism + 4-line prism, combinable with simultaneous rotation

3. Shutter/Cutting System

4. 4 independent blades for fast and smooth cuts

5. Individual control of blade direction and angle, full blackout capable per blade

6. Full module rotation: ±60°

• COLORS

• Color Temperature: 7000K

• CRI: Ra72 (High-Brightness Mode) / Ra95 (High-CRI Mode)

• Color Wheel: 5 colors + CRI filter + 1 open

• CMY + CTO Mixing: CTO range 2700K–7000K

1. PAN&TILT

2. Pan: 540°, Tilt: 260°, 8/16-bit precision

• EFFECT

• High-Speed E-Strobe: 1–25 Hz

• LED Refresh Rate: 400 Hz–24 kHz

• Frost: Medium diffusion

• Iris Range: 2.2–45°

1. PHYSICAL INFORMATION

2. Dimensions:

3. 358×240×672 mm (Quick-lock hook version)

4. 358×240×692 mm (Integrated hook version)

5. Weight: 30 kg (Quick-lock)

6. 31.5 kg (Integrated hook)

7. IP Rating: IP65
