Product Parameters

• Optical

• Light Source: 80 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy

• Viewing Angle (with installed square milky filter): 160°

• Viewing Angle (with optional dome filter): 160°

• Illuminance – open: 8,640 NITS

• Illuminance - square milky filter (installed): 2,470 NITS

• Illuminance - black stealth filter (included): 1,455 NITS

• Illuminance - round milky filter (optional): 1,360 NITS

• Pixels: 1LED/2LEDs/4LEDs as 1Pixel

• Refresh Rate: 4800 Hz

• Construction / Physical

• Dimensions :1000x35x100mm(with handle)

• Weight:2.15 kg

• Exterior Color: Black

• Housing Material: Aluminum

• IP Rated: IP65

• Connections

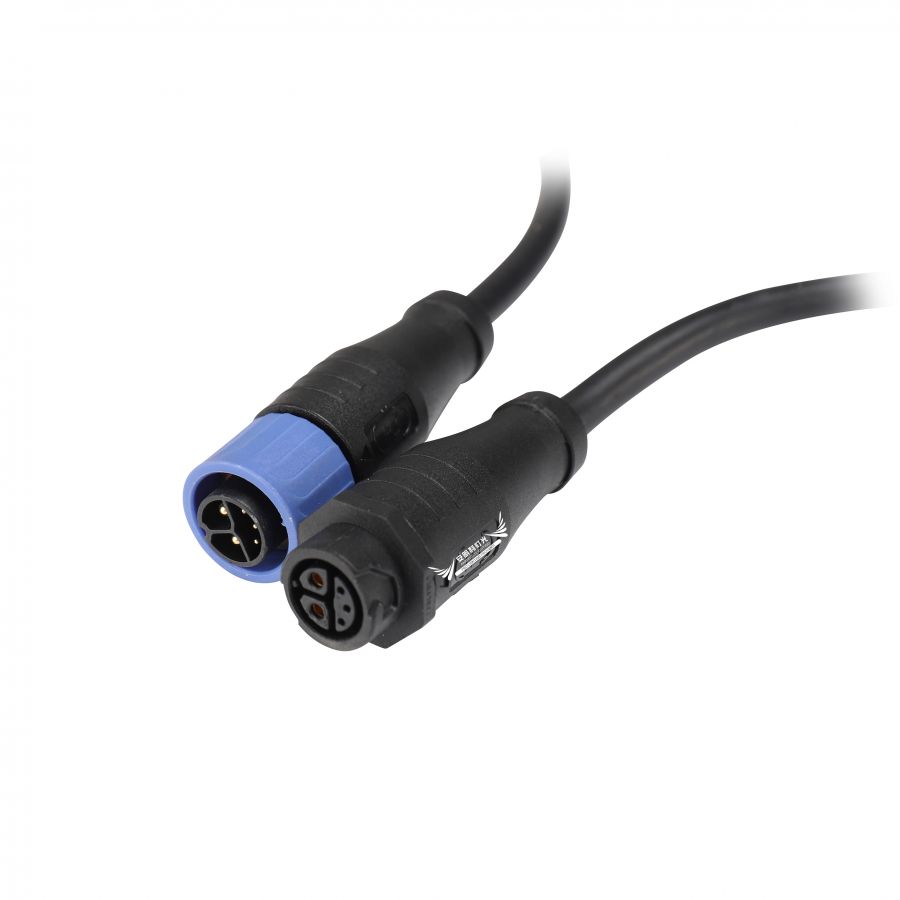

• 2+3pin cable (2+3pin for both power&data to the product)

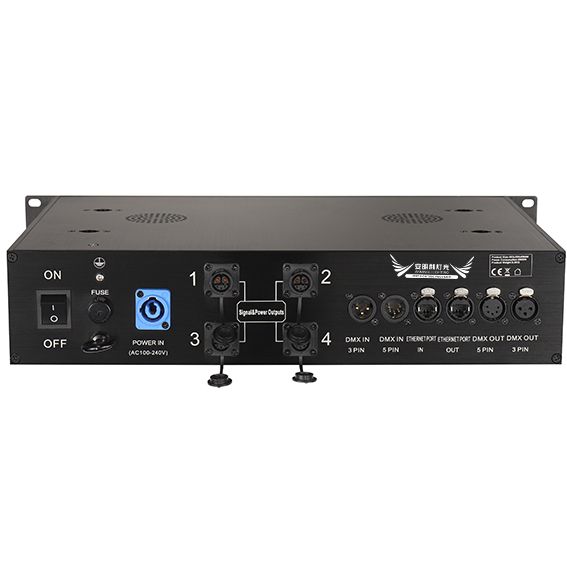

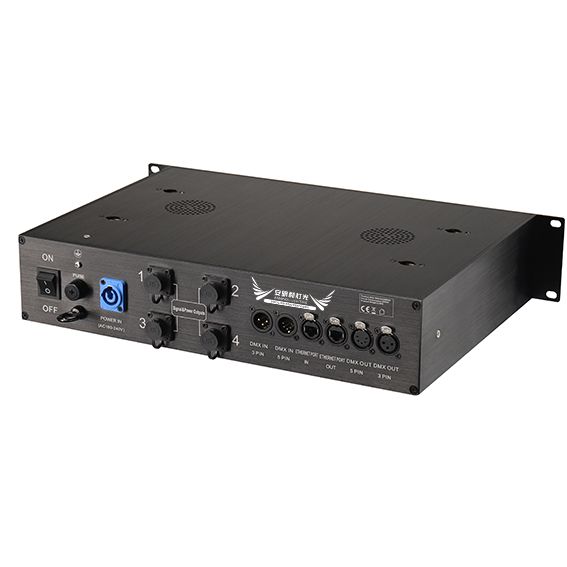

• Physical Linking:8 pcs of Strip IP per port of Drive IP,Total 32 pcs of Strip IP for the whole Driver IP

• ConTROL

• Control Protocol: Art-Net, sACN,RDM,DMX

• Control Channels (Art-net, sACN): 3

• Electrical

• Power and Current: 25 W, 0.195 A @ 230 V, 50 Hz
