Product Parameters

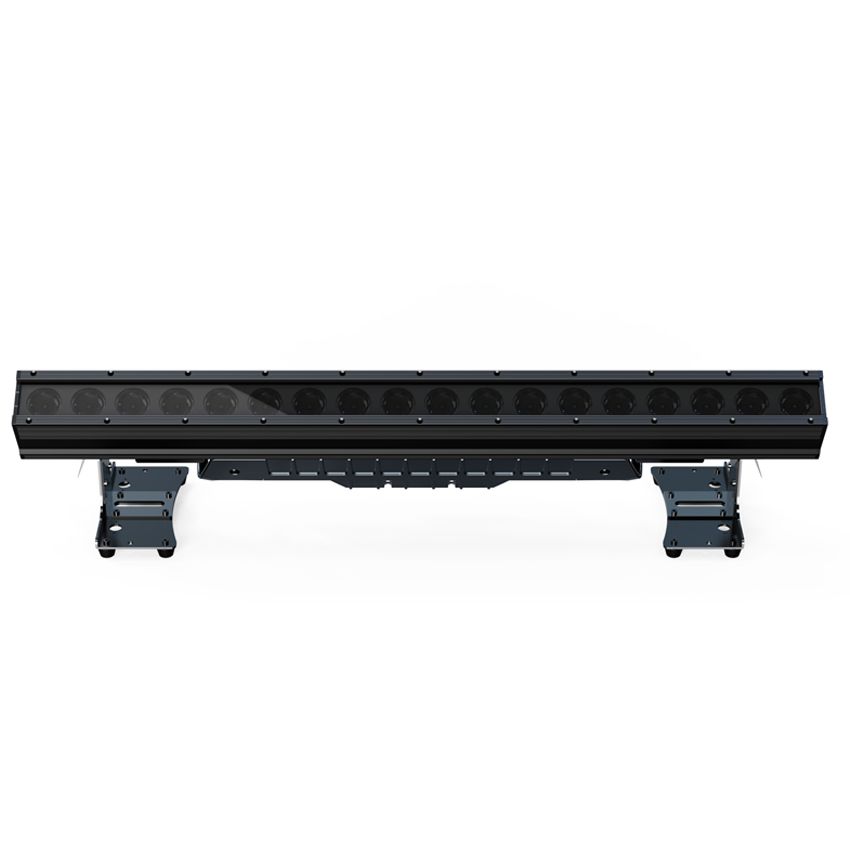

• CONSTRUCTION / PHYSICAL

• Dimensions: 1000*85*210MM

• Weight； 10.5KG

• Exterior Color: Black

• Housing Material: Magnesium-aluminum die-casting + aluminum profile

• DYNAMIC EFFECTS

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0-25Hz

• Standalone: Yes

• Color Mixing: Yes

• Color Temperature Presets: Yes

• Dim Modes:4 kinds

• White Balance: Yes

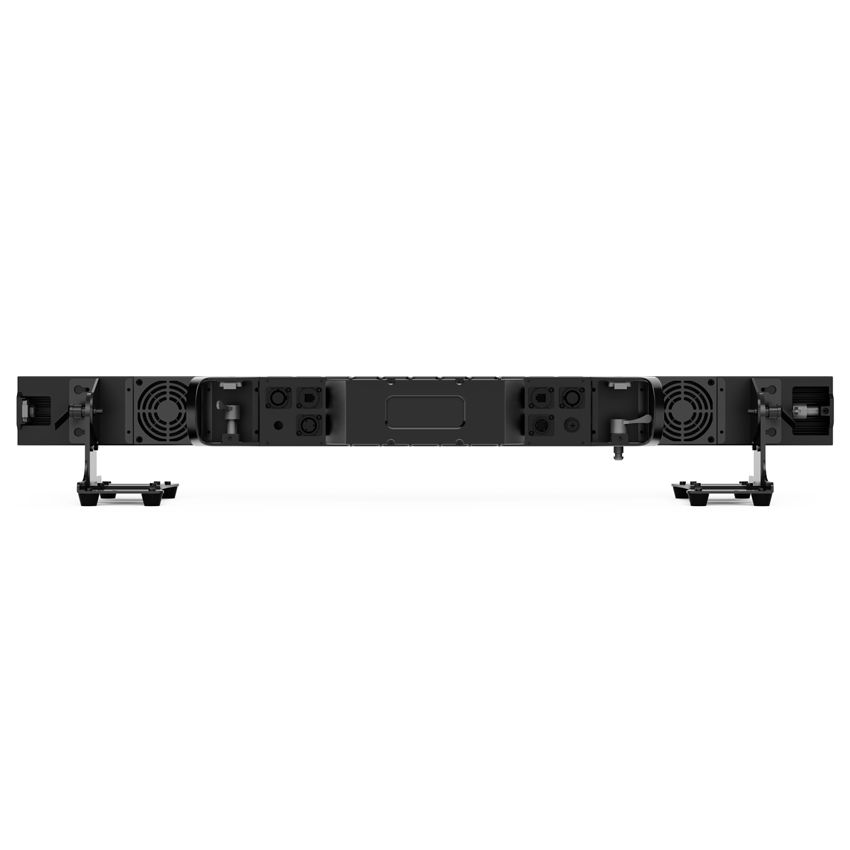

• CONNECTIONS

• Power Connection: Seetronic Powercon IP65

• Power Input/Output: Seetronic Powercon IP65

• CONTROL

• Control Protocol: DMX/ArtNet/sACN/RDM

• DMX Channels: 10/15CH

• Build-in Effects: Yes

• Software Update: Via RJ45 Cables

• ELECTRICAL

• Power Supplier:24V+12V at 10000W with FPS

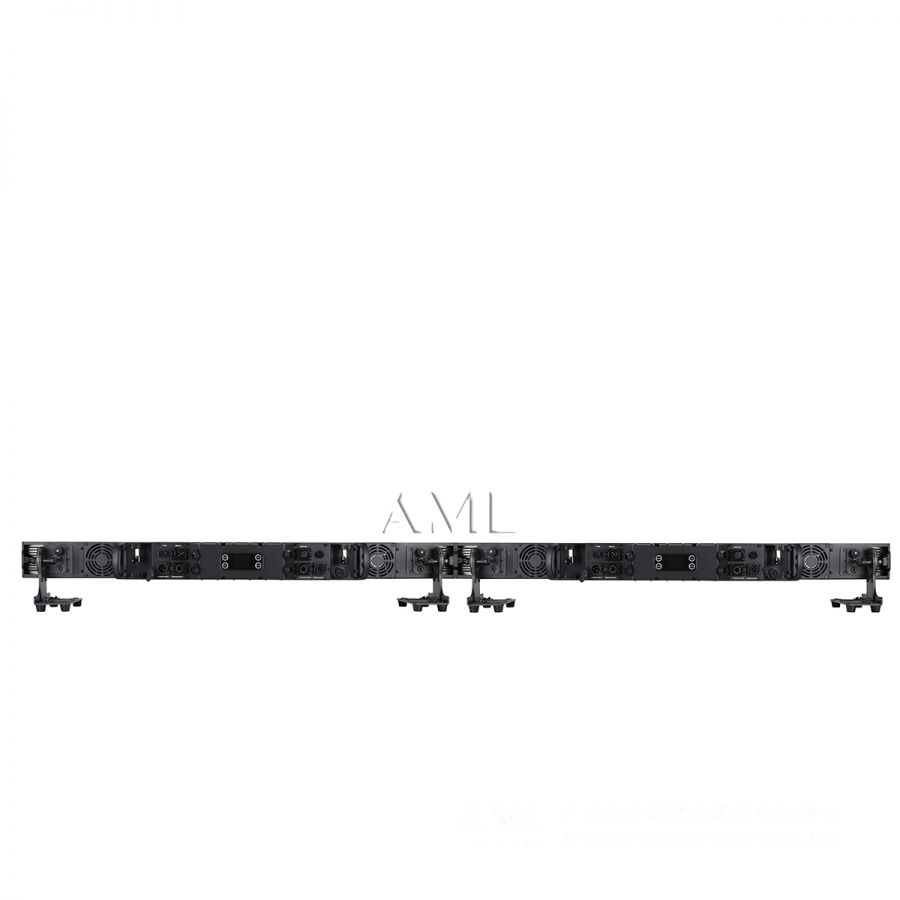

• Power Linking: 3units @ 100V;5 units @ 120V; 7 units @ 208V; 9 units @ 230V; 10 units @ 240V

• OPTIC

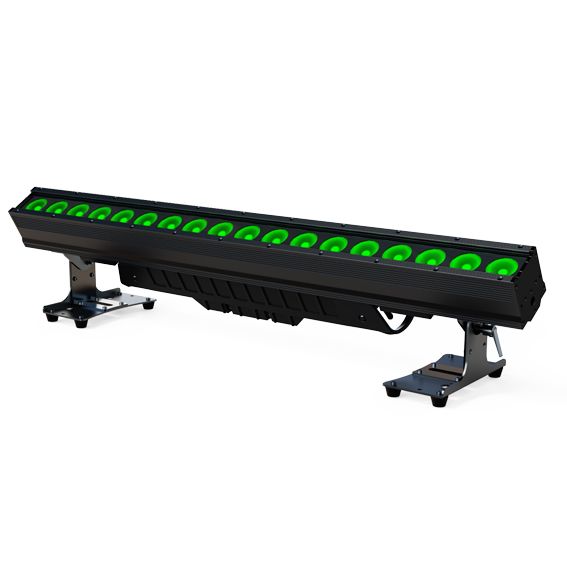

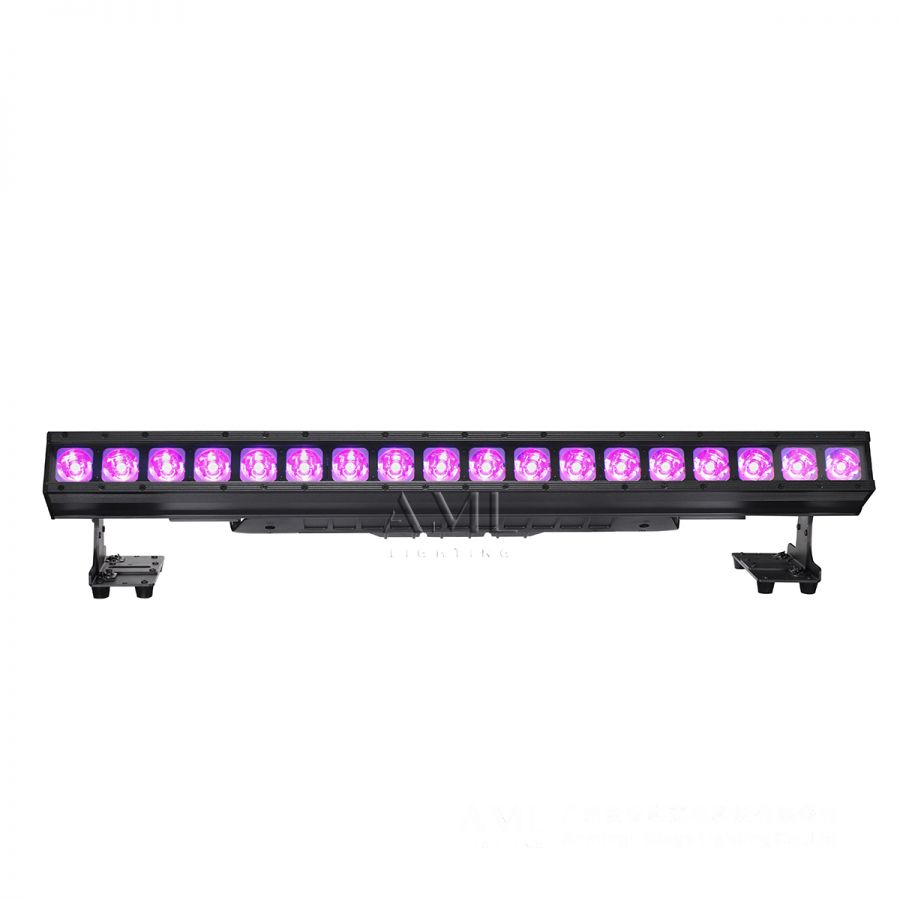

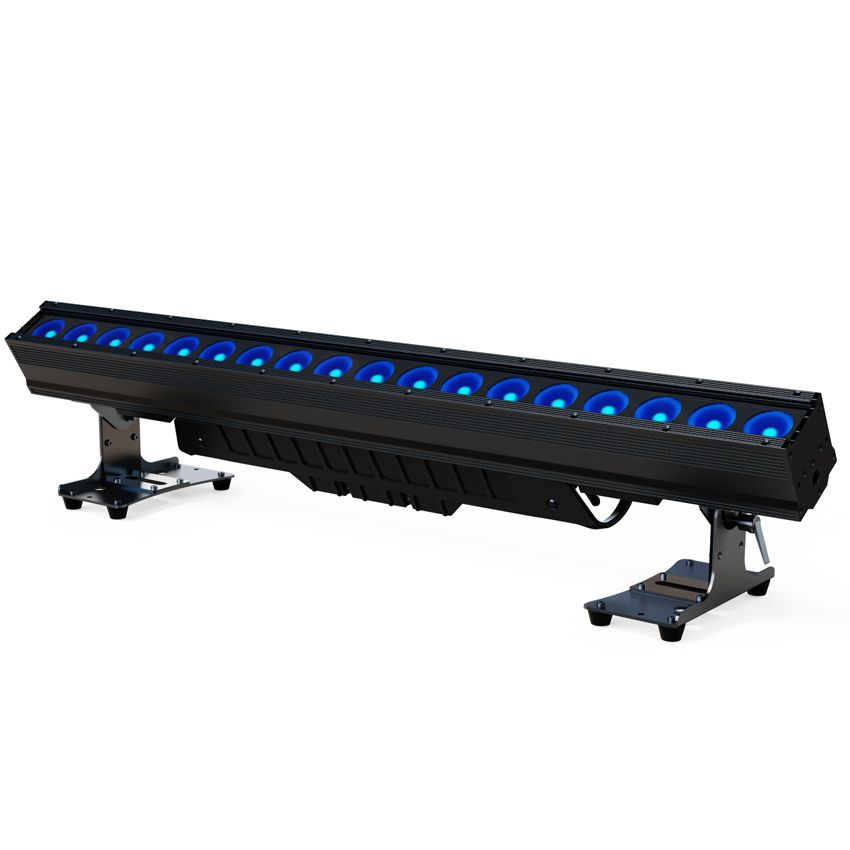

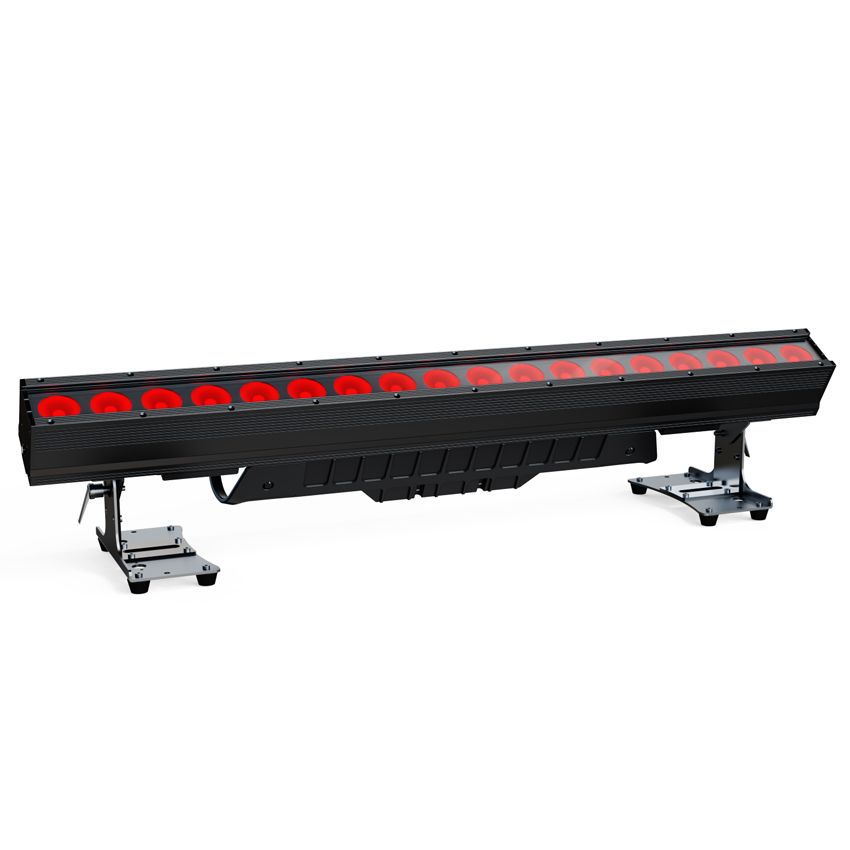

• Light Source: 18pcs*25W RGBL 4IN1 colors. Color Temperature: 2700-8000K

• Installed Optices: 6°(can be changed)
